PB15 MINI – compact pocket door system for smaller cabinets

CINETTO PB15 MINI is a compact pocket door system designed for furniture where space efficiency and clean, minimalist

design are essential. It is the compact version of the PB15 system, while retaining the smooth and precise door movement characteristic of the PB15 range.

The Easy Opening system guides the door smoothly and effortlessly into the pocket at the side of the cabinet. Once opened, the door does not obstruct the front of the cabinet, providing convenient and complete access to the interior. This makes PB15 MINI particularly suitable for contemporary furniture where functional areas can be concealed behind clean and elegant fronts.

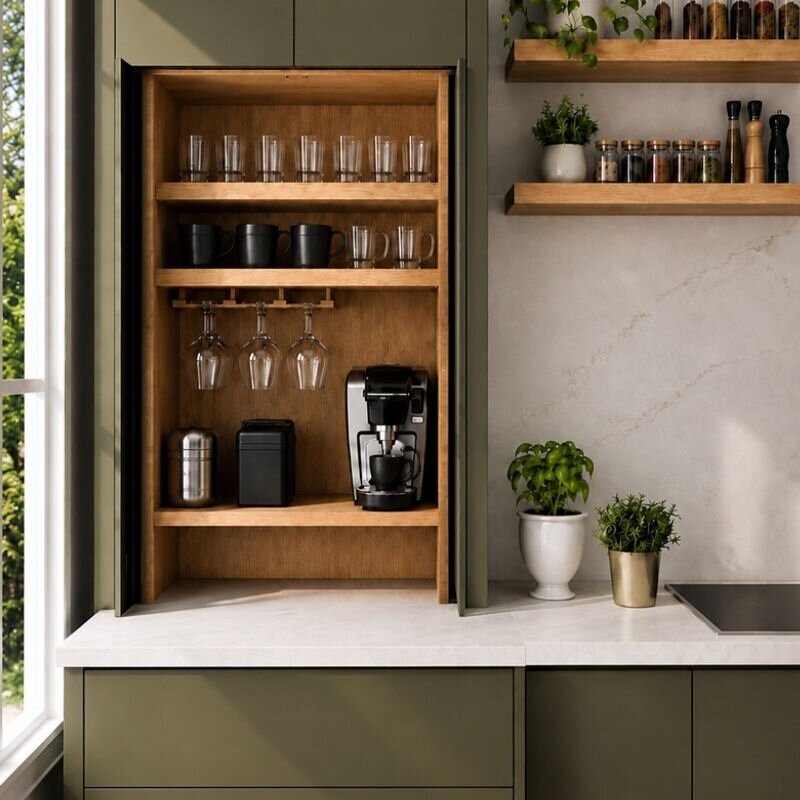

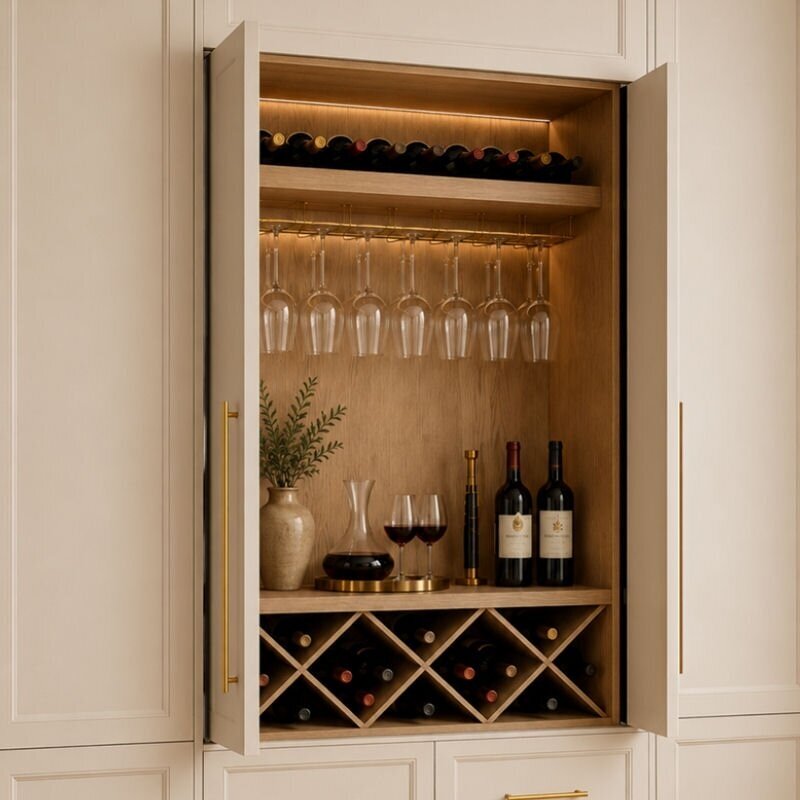

Thanks to its compact mechanism, PB15 MINI is ideal for countertop kitchen cabinets, bar cabinets, TV units, home-office workstations and other compact storage solutions.

- The PB15 Mini system is compatible with full overlay hinges with soft-close, with an opening angle of 84°- 96°.

  If the opening angle is larger, an 85° opening angle reduction clip must be used.

- Hinges are ordered separately.

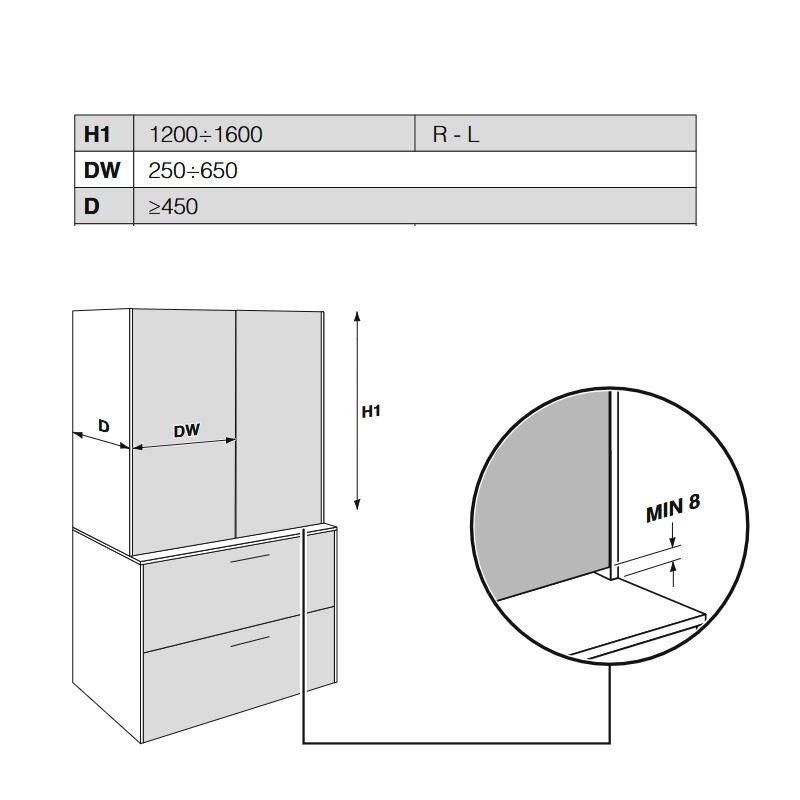

- The system is designed for doors 250–650 mm wide and weighing up to 18 kg.

- Front panel thickness: 18–25 mm.

- Door height: 1200–1600 mm.

- Minimum cabinet depth: 450 mm.

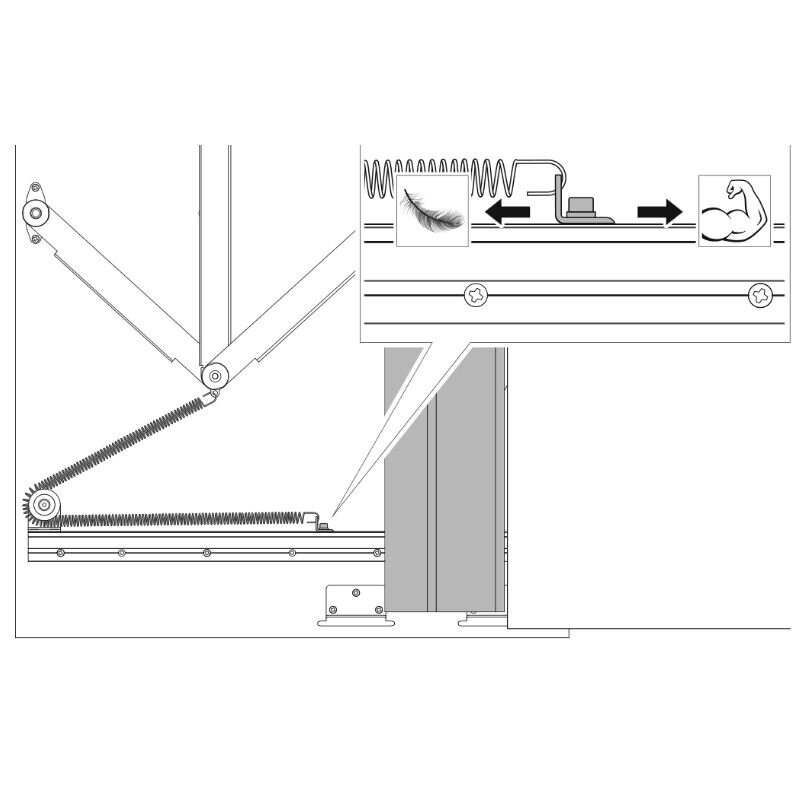

- Adjustable door closing force.

- The PB15 Mini pocket door system can be used with glass doors featuring a wide aluminum frame.

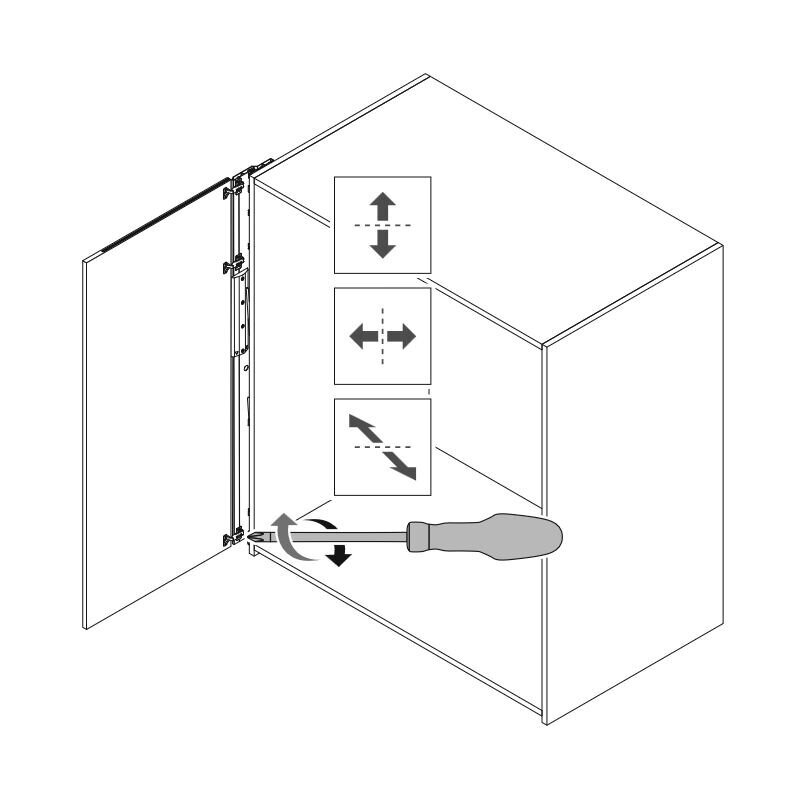

- The mechanism extends out of the cabinet for very easy hinge adjustment.

- Single and double brackets for external cabinet mounting are available as optional extras.
