Electronic lock with integrated sensor CAPTURA

- The lock has two modes: “assigned use“ (there is a fixed assignment between the transponder

  cards and the locks, programmed by means of a master card) and “shared use“ (if a lock is closed with the user card, the user card

  and the lock are coupled to each other. The card cannot be used at any other lock in “shared use“ mode, and the lock will not accept

  any other user card. This coupling is only deactivated when the user opens the lock again with his user card). When the lock is

  open, you have the option of changing the mode. To do this, the master card and the programming card “P1: Mode“ are required.

- Simple RESET back to factory mode by „P3: Reset“ card (lock does not have to be dismounted for a reset).

- Up to 250 user cards per lock in "assigned use" mode.

- Battery-life-time: up to 25.000 cycles. The locking system is equipped with a battery management system which uses visual and

  acoustic signals to indicate the need for battery replacement in the event of reduced battery power. At the end of battery life the

  lock can only be opened. Before the lock opens, a battery warning is given. The batteries must be replaced without delay. Battery

  replacement should be carried out within 2 minutes. The lock will not open automatically = high security.

- Acoustical and optical LED signaling (Optical indicator by light-point). Acoustic signalling can be deactivated with card

  „P2: Sound“.

- Automatic locking configurable. After opening the lock with a programmed transponder in the operating mode “assigned use“,

  the lock closes automatically after 5 seconds once this function has been activated.

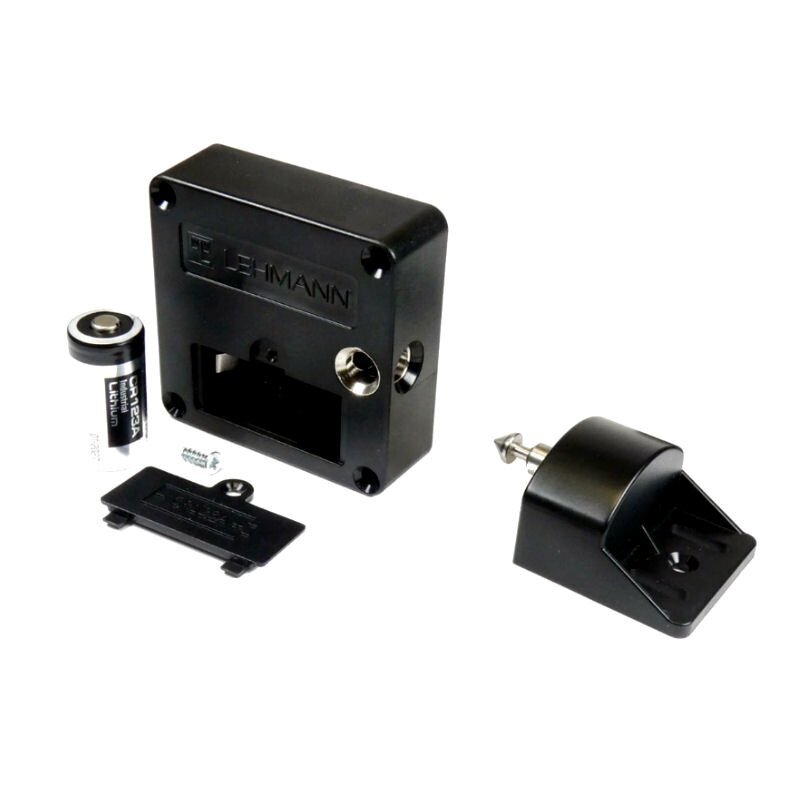

- Slam lock with optional ejector pin to push door open.

- Reading distance: up to 30mm with LEHMANN user cards.

- Assembly in metal with additional component. When installing the lock on metall surfaces, the cover C1 for metall surfaces

  is required. Only suitable for single-layer steel doors with a thickness of 0.5 - 2.5 mm.

- A LED at the center of the underside of CAPTURA may be used in combination with optional fibre pin for optical signals on

  furniture front.

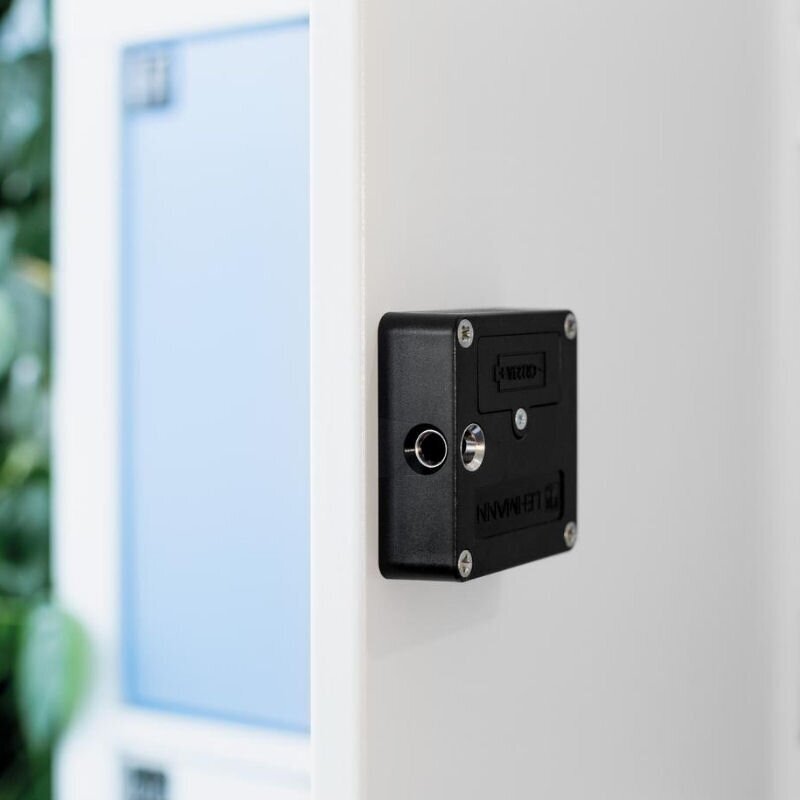

- Concealed installation inside the furniture. Invisible from outside.

- NFC compatible: Use your Android mobile phone to open/close.

- Small order surcharge of 50,00€ is charged for orders less than 5 pcs.
