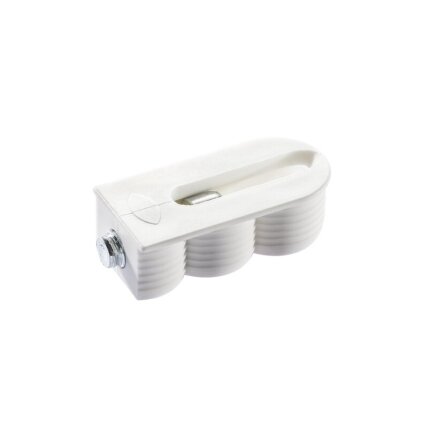

Cabineo 12 connector

Cabineo 12 is a one-piece cabinet connector which can be used with all CNC

machines because only surface machining is required. The Cabineo is installed

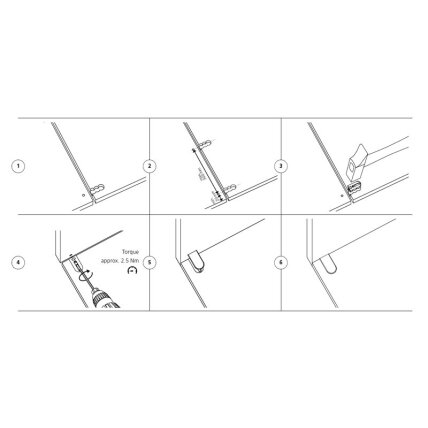

in the board either in the workshop or on site. The pre-assembled screw in the

connector is screwed into the 5 mm hole of the second workpiece using a cordless

drill. Cabineo impresses with its time-saving processing and assembly as well as

the high clamping force which leads to stable connections without the need for

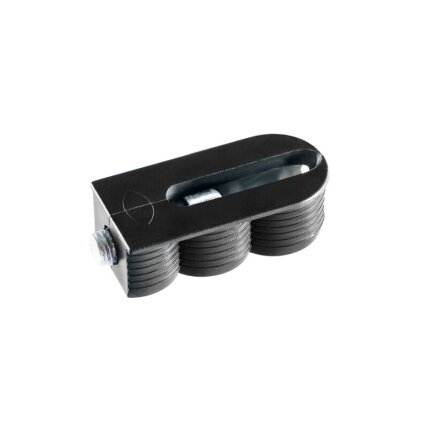

additional dowels. Cabineo is available in white or black.

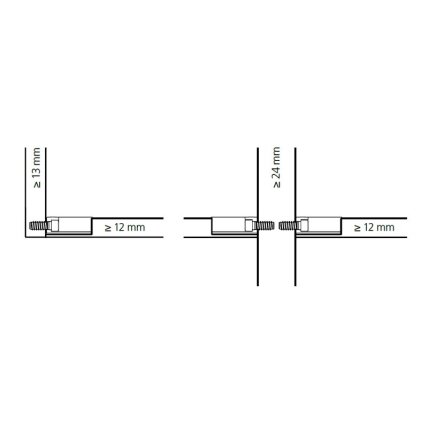

- Screw length: 12 mm.

- Drill: Ø 5 mm ir Ø 15 mm.

- Cutter: Ø 12 mm or smaller.

- Material housing - fiberglass reinforced plastic.
